In complex outdoor environments, touch displays are required to deliver superior performance, including explosion resistance, reliable touch stability under extreme conditions, as well as excellent water and dust resistance. So what effective solutions can we adopt to address these challenges?
Specifications:
| Resolution |
1920×1080 |
| Luminance |
1000Cd/㎡ |
| Contrast Ratio |
3000:1 |
| Viewing Angle |
89/89/89/89 |
| Display color |
16.7M |
| Response Time |
30ms |
| MTBF |
30000h |
| Surface Hardness |
Mohs N7 |
| Dynamic range |
68DB |
| Operational power consumption |
Pmax=25W |
1.Adopt industrial-grade components. The touch IC, LCD panel and backlight IC feature an operating temperature range of -40℃ to 85℃, eliminating parameter anomalies of consumer-grade devices in low-temperature environments. Low-temperature resistant materials are used for conductive circuits, OCA adhesive and back adhesive to prevent cracking and sudden resistance changes under cold conditions.
2.Optimize the power-on sequence and extend preheating & initialization time, so as to prevent components from operating before stabilization at low temperatures and eliminate slow startup. Enable the low-temperature gain algorithm to compensate for weakened touch signals in cold environments.
3.Equipped with full-range dynamic temperature compensation, it calibrates capacitance and voltage parameters in real time to suppress touch drift and position deviation caused by low temperatures.
4.Install low-power flexible heating films for extreme cold regions. The cavity maintains a constant temperature for preheating, keeping core components operating within the normal temperature range.

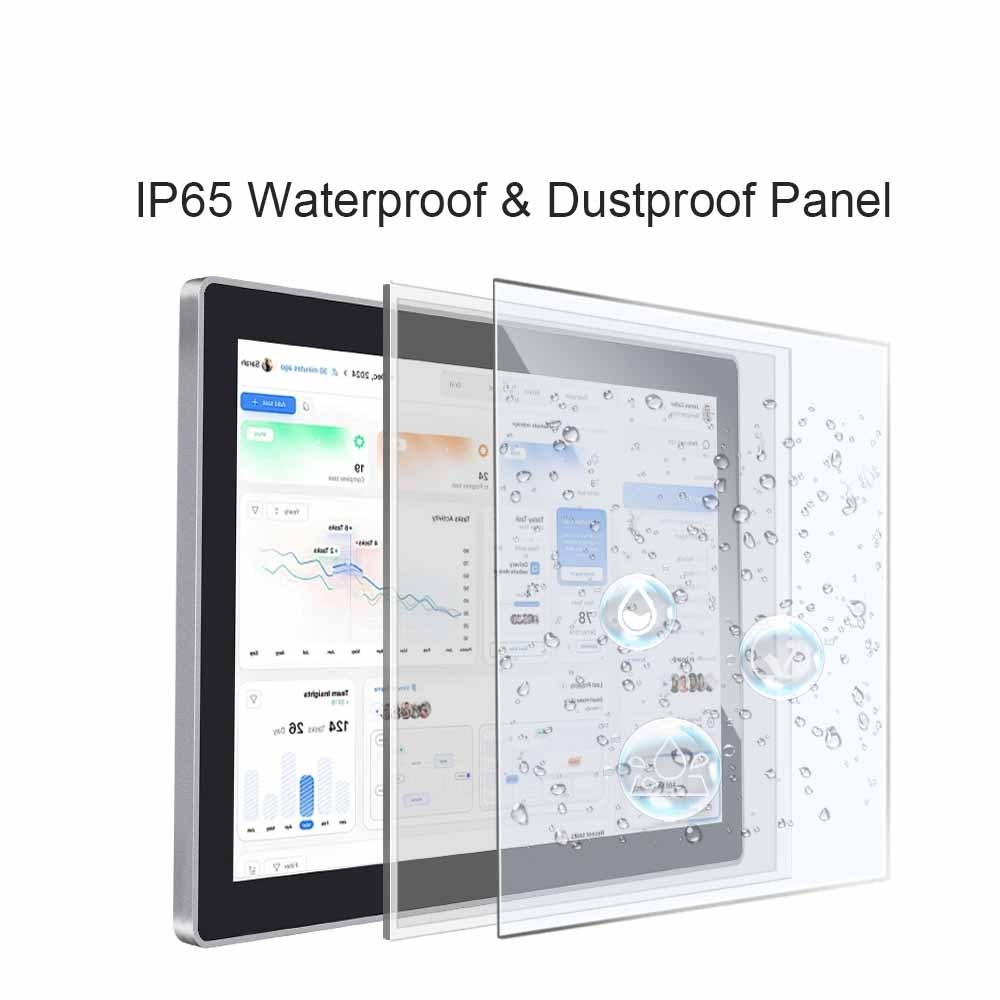

5.The module and complete unit feature an IP65 or higher ingress protection rating. Temperature and moisture resistant sealants and silicone gaskets are fitted at seams, connectors and wiring areas to block moisture penetration and prevent internal condensation at the source.
How to Improve Touch Accuracy with Gloves On？1.
Adopt industrial-grade touch ICs, dedicated capacitive touch chips optimized for thick glove operation. They amplify weak induction signals and natively support cotton, knitted and thin thermal gloves, enabling normal operation without bare hands.
2.Features high-sensitivity ITO circuits for enhanced sensing penetration. The preferred G+G structure delivers lower dielectric loss and superior signal penetration compared to film-based touch screens.
3.Lower the touch trigger threshold at the hardware level to balance glove operation and basic anti-false touch performance, preventing no response when using thick gloves.
4.Built-in glove touch algorithm with manual mode activation. Premium solutions support automatic glove detection and dynamic parameter switching.
5.Increase signal sampling gain and extend sampling duration to capture weak capacitive signals from gloved operations, solving unresponsive tapping and sliding issues.
6.Optimize recognition logic to adapt to large and irregular contact areas caused by gloves, and broaden the valid touch detection range to avoid misjudgment and discontinuous touch.
7.After enabling glove mode, the filtering parameters are optimized synchronously. This ensures reliable operation with gloves while preventing false triggers caused by sleeves or large-area accidental contact.
FAQ1.Q: Can this touch screen work normally when wearing gloves in outdoor industrial scenarios?A: Yes. It adopts dedicated glove touch chips, high-sensitivity ITO circuits and optimized algorithms, supporting cotton, knitted and thermal gloves for stable tapping and sliding.
2.Q: Will enabling glove mode cause frequent false touches?A: No. We adjust filtering parameters synchronously after activating glove mode, effectively avoiding misoperations from sleeves and large-area accidental contact.
3.Q: What is the operating temperature range of the touch display for extreme outdoor environments?A: All core industrial-grade components work steadily from -40℃ to 85℃. Heating films are equipped for extremely cold areas to maintain constant internal temperature.
4.Q: How about the waterproof and dustproof performance of the product?A: The module and complete unit adopt IP65 or higher sealing design. Sealing materials are used at all joints and ports to block moisture and prevent internal condensation.
5.Q: Does the touch screen have touch drift issues in low-temperature environments?A: It supports full-range dynamic temperature compensation to calibrate parameters in real time. Combined with optimized power-on sequence, low-temperature touch drift and slow startup are fully solved.
